Ultrasonic and Electrosurgical Instruments&SureSeal Maryland Open/Endoscopic Surgery Sealer/Divider

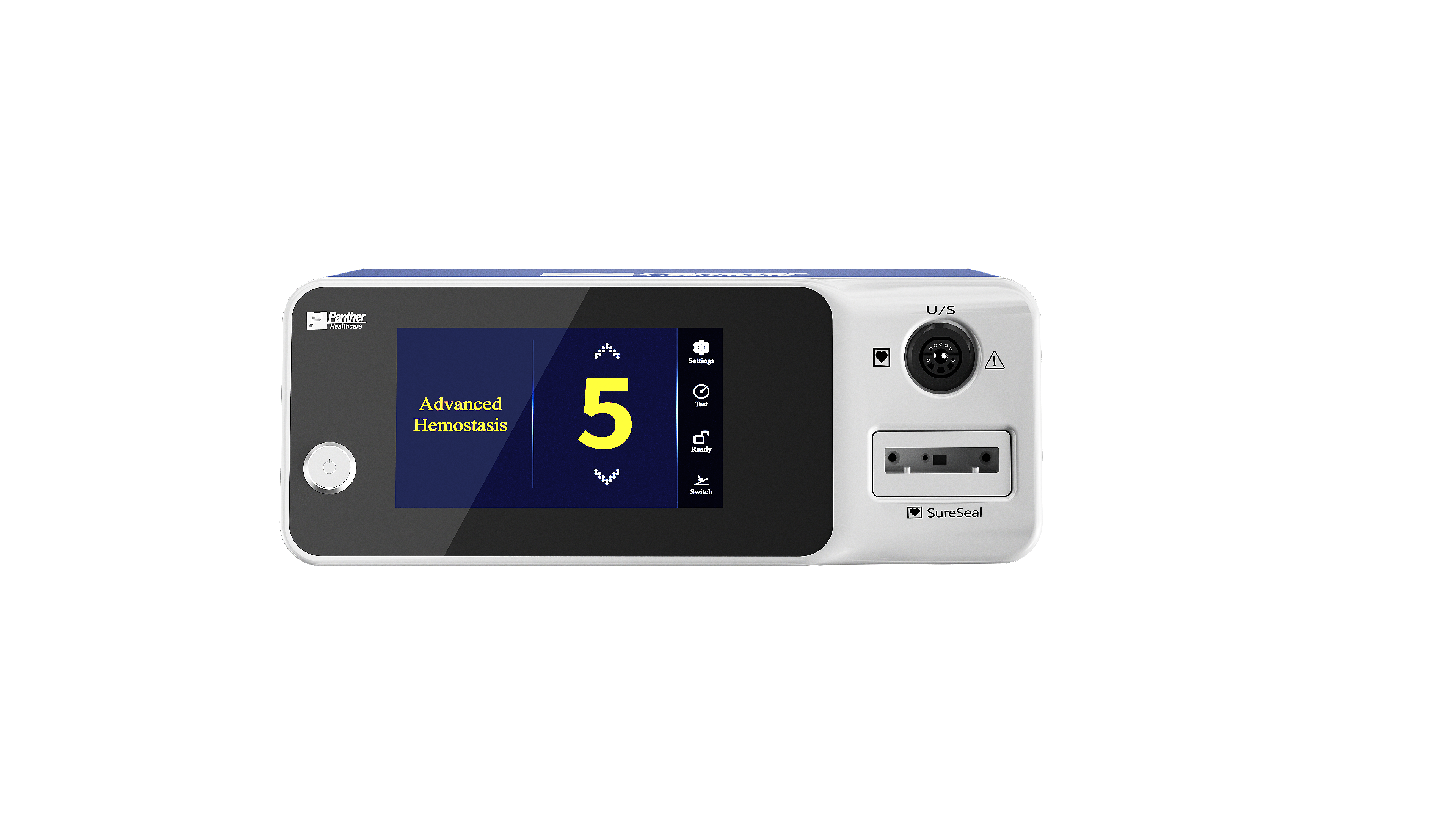

SGE100 is a dual-channel advanced energy platform, incorporating both ultrasonic scalpel and advanced bipolar Vessel-Sealing.

The dual channels enable multiple energy outputs without the need to repeatedly  and remove the surgical tool during the procedure. This device meets the needs of various departments and surgical techniques, improving surgical efficiency and clinical quality. It can seal blood vessels with a maximum diameter of 7mm, making it suitable for a wide range of applications.

Safety Features of SGE100

·         Classified by type of electric shock prevention: Class I

·         Classified by the degree of electric shock prevention in the application section: CF type

·         Classified by the degree of protection against liquid ingress: IPX0 (non liquid ingress enclosed equipment), foot switch IPX8

·         Classified by safety level when used in the presence of flammable anesthetic gases mixed with air or flammable anesthetic gases mixed with oxygen or nitrous oxide: Non-AP/APG type

·         Classified by operating mode: Non-continuous operation: On for 15 seconds, Off for 15 seconds

·         Rated voltage and frequency: 100-240VAC,50/60Hz

·         Input power: 500VA

·         Does it have a signal output or input part: None

·         Does it have an application section for protecting against defibrillation discharge effects: SureSeal Maryland Open/Endoscopic Surgery Sealer/Divider

·         Permanent installation equipment or non-permanent installation equipment: Non-permanent installation equipment

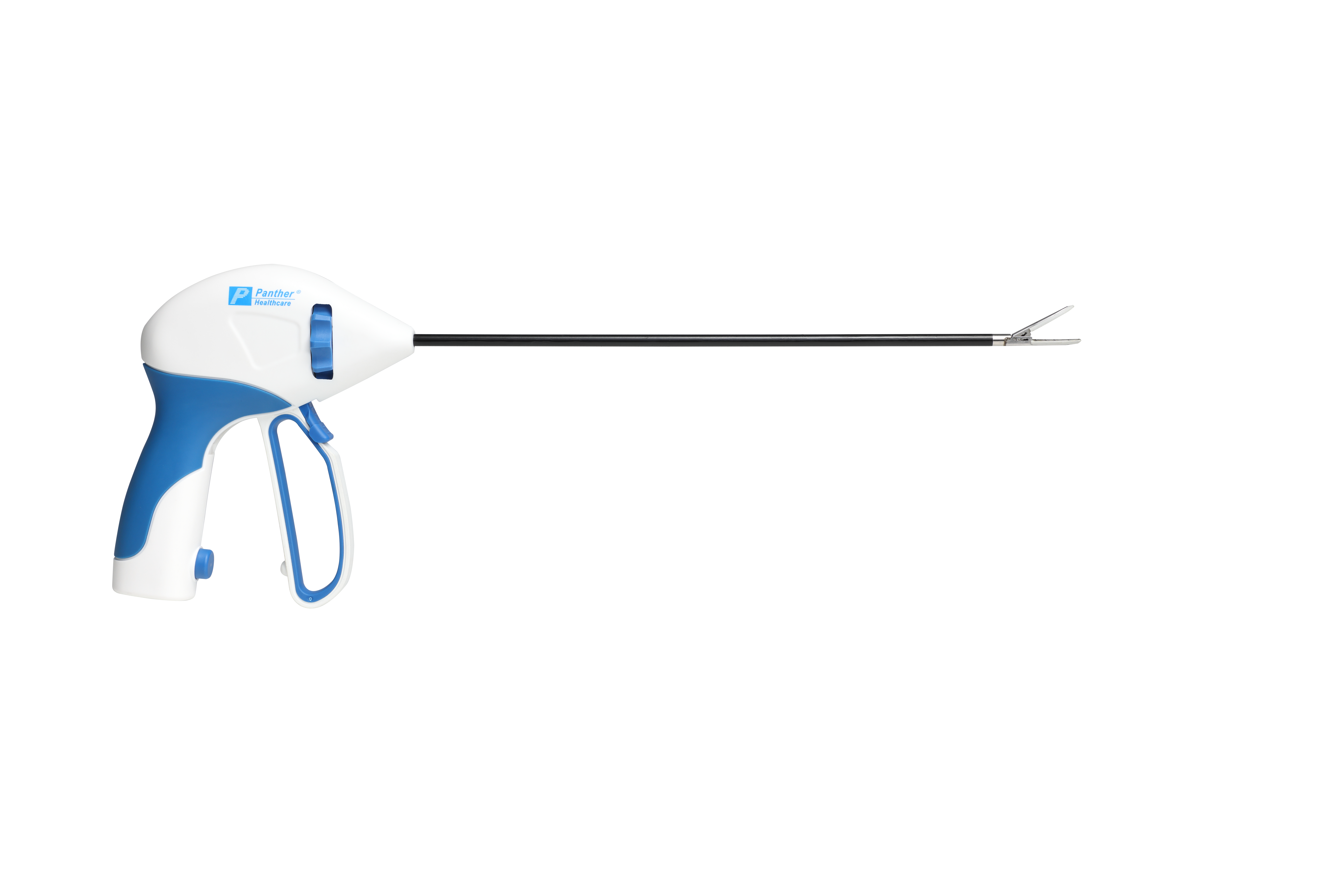

Instruments can safely and permanently seal vessels up to 7 mm in diameter, utilizing real-time impedance monitoring technology, it achieves precise automated energy shutoff and minimal lateral thermal spread, which, along with an anti-adhesion coating and an all-in-one instrument design, significantly enhances surgical safety and operative efficiency.

Safety Features of SureSeal Maryland Open/Endoscopic Surgery Sealer/Divider

·         Classified by the degree of electric shock prevention in the application section: CF type

·         Classified by the degree of protection against liquid ingress: IPX0(non-liquid ingress enclosed equipment)

·         Classified by safety level when used in the presence of flammable anesthetic gases mixed with air or flammable anesthetic gases mixed with oxygen or nitrous oxide: Non-AP/APG type

·         Classified by operating mode: Non-continuous operation: On for 15 seconds, Off for 15 seconds

·         Permanent installation equipment or non-permanent installation equipment: Non-permanent installation equipment

Basic performance of above products

·         SGE100 integrates multiple surgical modes such as SureSeal mode and Ultrasonic mode. Different modes have independent interfaces, and the operation is simple and convenient.

·         An 8-inch independently controlled touch LCD screen, with one-click startup and single-screen operation, making the operation very convenient.

·         The SureSeal mode and the ultrasonic mode of the generator SGE100 can automatically switch according to the usage of the device. The SureSeal mode does not require any parameter adjustments. Complete vascular closure and ligation in one step; the operation is simple and convenient.

·         Utilize tissue sensing technology to dynamically adjust the magnitude of the output energy. Provide controllable and stable energy output. It can seal up to 7mm of vascular tissues and simultaneously reduce tissue adhesion.
